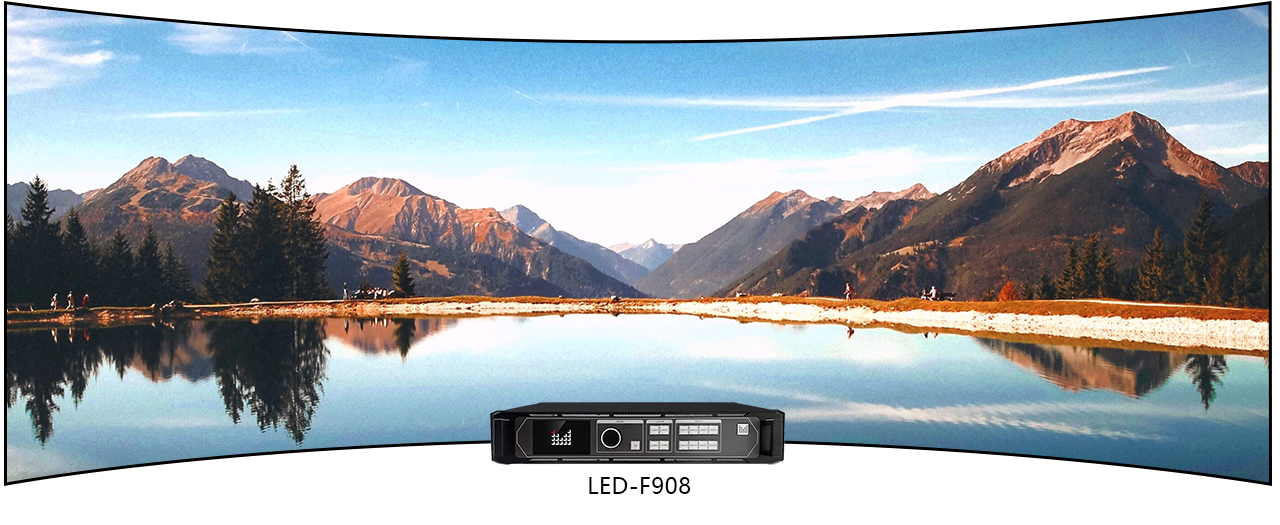

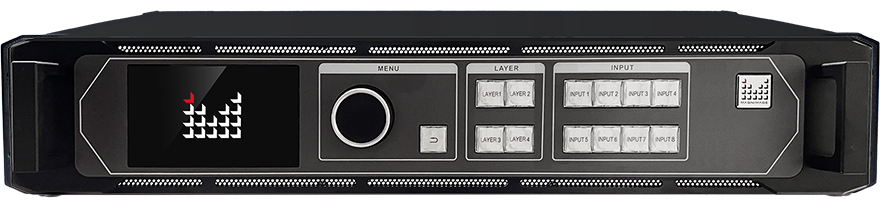

LEDVideoControlServer

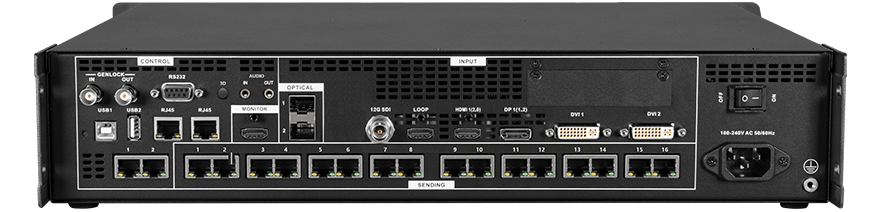

2×HDMI2.0, 2×DP1.2, 2×DVI, 1×audio,1×12G SDI；and its outputs support 16 Gigabit network port（s 8 main 8 backup）, 2×10G optical fiberinputs/outputs (for signal input or copy the output with ethernet）, 1×HDMI Loop, 1×audio output and 1×HDMI monitor.

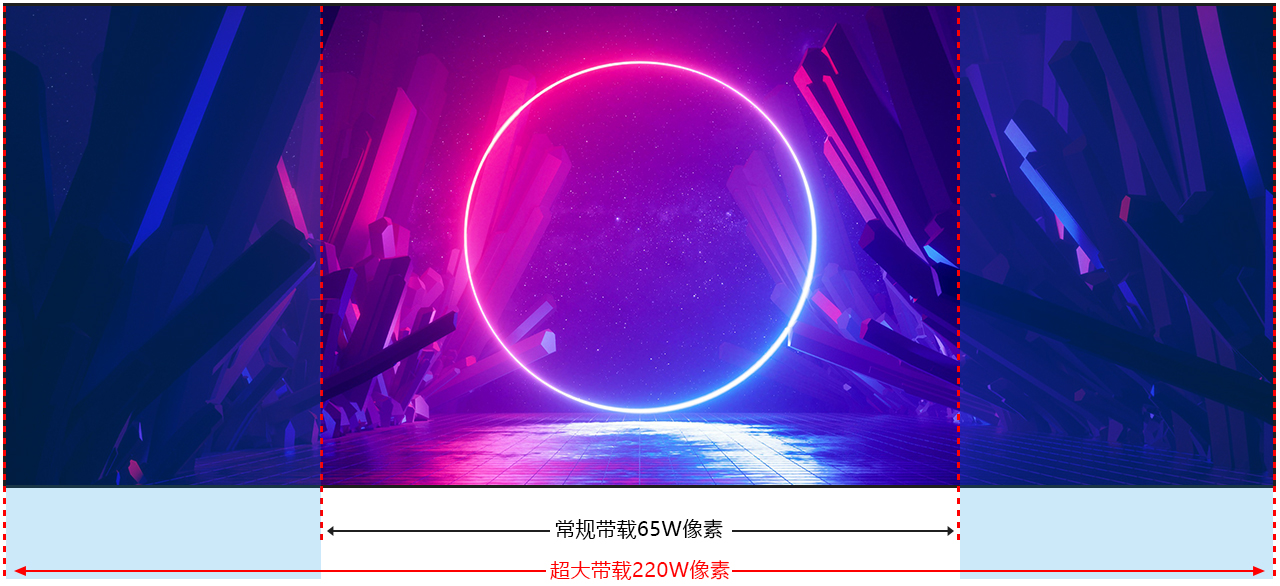

Breaking through the tradition with unique super large loading function,the loading capability of single port can reach 2.2M（2048×1080@60Hz）

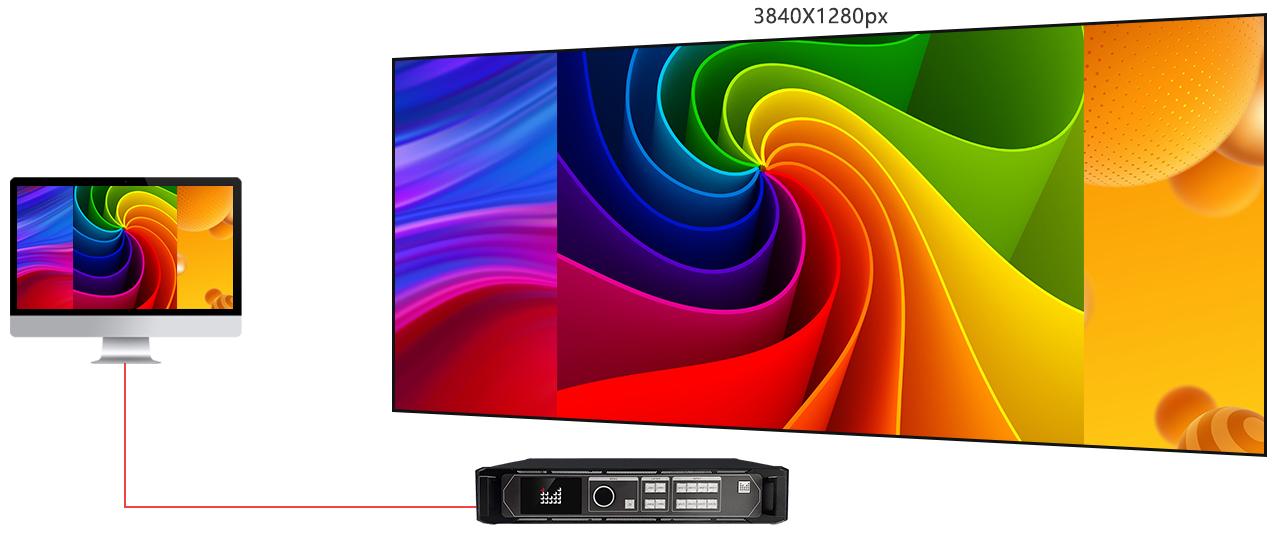

machine can load 15.68M, and the Max. Width of whole machine is 16380px; Max. Height is 7680px single network port can load up to 0.98M

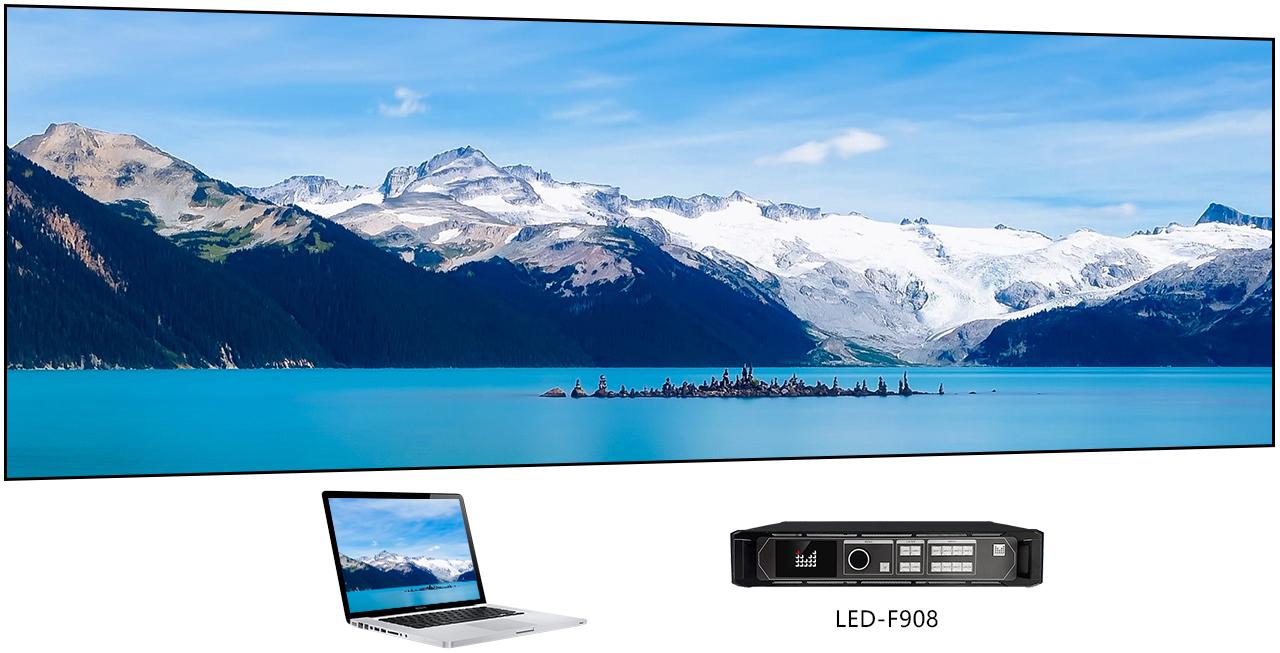

4 independent layers, can be adjusted arbitrarily; seamless switching between input sources and presets (4 layers to 4 layers)  Small projects can be done with 1 device.

Each network cable can be loaded according to the actual number of pixel in the cabinet, discounts and blanks do not account for the loading. It is no longer limited to the loading area of rectangular, which effectively improves the utilization of the net

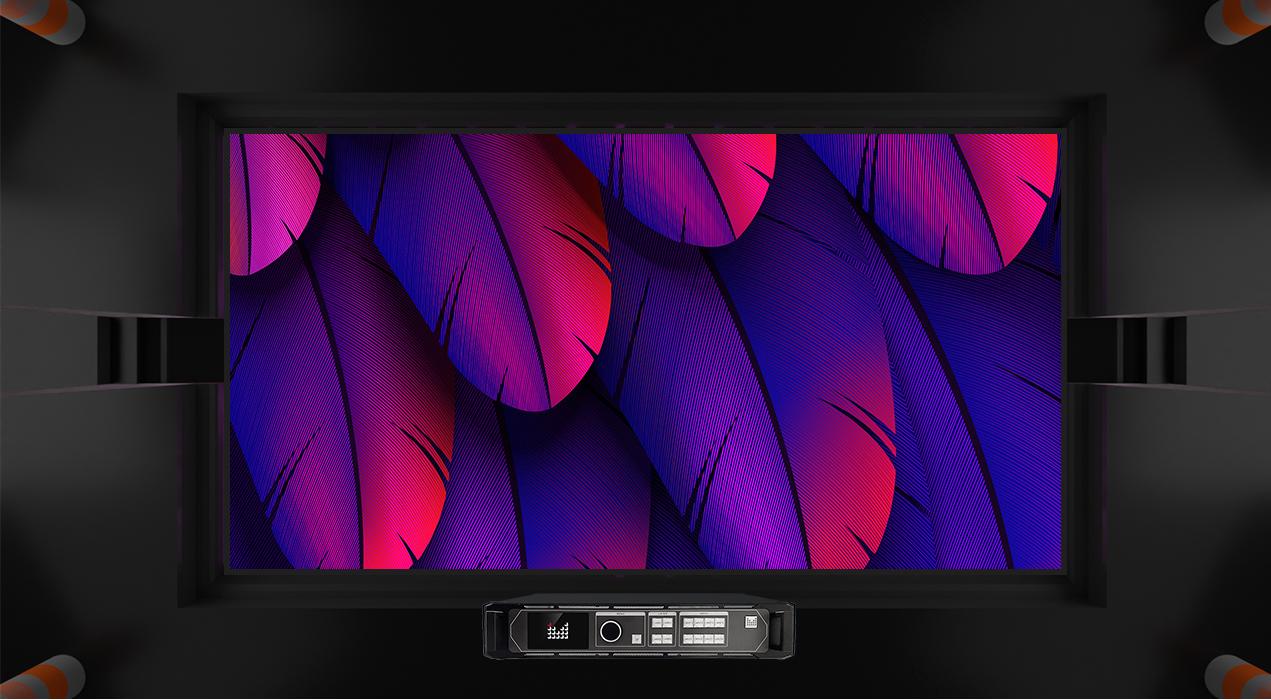

n external monitor tracks the whole machine’s output, enabling operators to check the LED screen’s display content effortlessly when direct viewing is unavailable, ensuring worry-free LED control.

Automatic switching for signal sources or presets at the setting time

With the multi-function card and light sensor probe, the brightness of the LED screen can be automatically adjusted according to the changes in the brightness of the use environment. Or at the set time node, automatically adjust the LED screen to the brig
